Spoiler Rubber Dam - Anti Vibration Effectively

Spoiler rubber dam, also known as disturbed flow rubber dam, adds the spoiler seismic structure at the base of common rubber dam. It is made of rubber cloth vulcanized by EPDM and synthetic fabrics. Rubber dam can be inflated by air or water. It can effectively prevent rubber dam oscillating or squirming, thereby reduce the friction with downstream rubber protective layer result from rubber dam vibration. It is usually used to retain water, control flood, agricultural irrigation, power generation, beautify environment, etc.

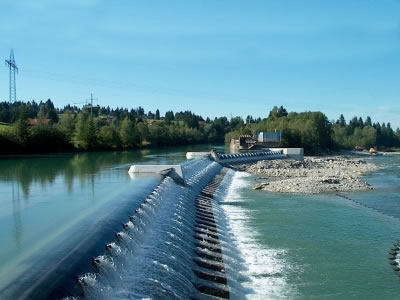

A black spoiler rubber dam is on the side of the river.
SRD-1: Spoiler rubber dam has good elasticity.

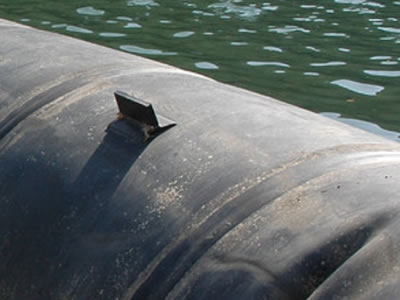

Spoilers on a piece of black spoiler rubber dam bag.
SRD-2: Spoiler on the rubber dam can reduce the vibration of the dam bag.

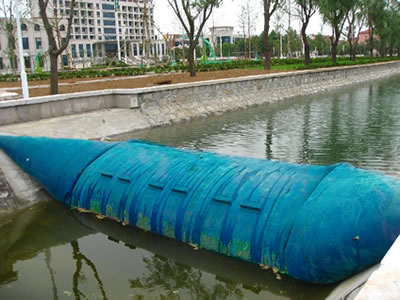

A blue spoiler rubber dam is in the river which water level is low.
SRD-3: Spoiler rubber dam has good tensile strength.

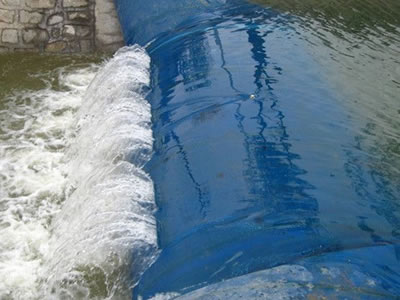

The water overflows the spoiler rubber dam and forms a waterfall.
SRD-4: Spoiler rubber dam can be resistant to weathering.

Spoiler rubber dam consists of rubber bladder, anchoring clamping system, air evacuation system, anti vibration and anti vibration spoiler, abrasion resistant protective layer. Following I will introduce the five parts in detail.

  1. Rubber bladder
    Spoiler rubber dam is made of 90% EPDM. EPDM is a kind of special rubber with notable features in extreme temperatures, also can be resistant to weathering, ozone, UV. Spoiler rubber dam uses high strength polyester fabric which makes the dam bag have high tensile strength, obvious revivification advantage, not deform in long term using.
  2. Anchoring clamping system
    Anchoring clamping system is simple, easy to install, and a airtight waterproof system. According to different upstream water level and other factors, single anchor or double anchors can be used to fix rubber dam foundation. Clamping plates and anchor bolts usually are fixed on concrete foundation, also can be fixed on existing hole, then pour resin.
  3. Air evacuation system
    When air inflatable rubber dam complete collapse, dam bag is flat and no resistant to water. An independent air evacuation system channel evacuates air to exhaust vent ensuring that no remain air form, thereby guaranteeing dam bag cave in completely.
  4. Anti vibration and anti vibration spoiler
    Multivariate river flow and velocity of flow make whole or part dam bag vibrate which is solved by spoiler. Water overflow curtain passed spoiler can balance pressure which is the main control system of rubber dam seismic function.
  5. Abrasion resistant protective layer
    Protective layer can provide the rubber dam a complete protection, not only can prevent downstream abrasion, but also can prevent debris resident in the dam downstream.

Specification

  • Material structure: one cloth two rubber, two clothes three rubber, three clothes four rubber, etc.
  • Color: blue, black, red, gray, purple, etc.
  • Medium in dam: air or water.
  • According to installation method:
    • Single anchor.
    • Double anchor (pillow-like dam and inclined dam).
  • According to anchored method:
    • Bolt anchored.
    • Wedge anchored.
  • Customization can be available.
Physical and mechanical properties of spoiler rubber dam
Item Unit Outer layer Middle layer, inner layer Cover rubber sheet
Tensile strength at break MPa 14 12 6
Elongation at break % 400 400 250
Permanent deformation at break % 30 30 35
Hardness (shore A)   55-65 50-60 55-65
Brittleness temperature °C -30 -30 -30
Hot water aging (100 °C × 96 h) Tensile strength at break MPa 12 10 5
Elongation at break % 300 300 200
Hot water aging (70 °C × 96 h) Tensile strength at break MPa 12 10 5
Elongation at break % 300 300 200
Volume expansion ratio % 15 15 15
Ozone aging: 10000 pphm, temperature 40 °C, stretching 20%, no cracking min 120 120 100
Wear loss (akron) cm3/1.61 km 1.0 1.0 1.2
Flexibility, no cracking Ten thousand times 20 20 20
Specification of spoiler rubber dam
Code Height (m) Inner pressure / outer pressure Perimeter (m) Bottom gaskets width (m) Coefficient (k)
Air inflatable spoiler rubber dam
SDMS-1 1.0 1.60 3.19 1.30 > 6
SDMS-2 1.0 1.10 3.45 0.57 > 8
SDMS-3 1.0 1.00 2.88 0.60 > 8
SDMS-4 1.5 1.50 4.88 2.15 > 6
SDMS-5 1.5 1.10 5.17 0.85 > 8
SDMS-6 1.5 1.00 4.32 0.90 > 8
SDMS-7 2.0 1.50 6.51 2.87 > 6
SDMS-8 2.0 1.00 5.76 1.20 > 8
SDMS-9 2.0 0.90 7.05 1.28 > 8
SDMS-10 2.5 1.40 8.40 4.04 > 6
SDMS-11 2.5 1.00 7.20 1.50 > 8
SDMS-12 2.5 0.90 7.22 1.60 > 8
SDMS-13 2.5 0.75 7.27 1.81 > 8
SDMS-14 3.0 1.35 10.30 5.20 > 6
SDMS-15 3.0 0.90 8.66 1.92 > 8
SDMS-16 3.0 0.75 8.73 2.17 > 8
SDMS-17 3.5 1.30 12.35 6.58 > 6
SDMS-18 3.5 0.90 10.11 2.24 > 8
SDMS-19 3.5 0.75 10.18 2.53 > 6
SDMS-20 4.0 1.25 14.62 8.25 > 6
SDMS-21 4.0 0.90 11.55 2.56 > 8
SDMS-22 4.0 0.70 11.69 3.04 > 6
SDMS-23 4.5 1.25 16.45 9.28 > 6
SDMS-24 4.5 0.70 13.15 3.34 > 6
SDMS-25 5.0 1.20 19.18 11.53 > 8
SDMS-26 5.0 0.70 14.61 3.81 > 6
SDMS-27 5.5 1.20 21.10 12.68 > 8
SDMS-28 6.0 1.20 23.02 13.83 > 8
Water inflatable spoiler rubber dam
SDMS-29 1.0 1.6 3.70 1.8 > 8
SDMS-30 1.5 1.55 5.40 2.05 > 8
SDMS-31 2.0 1.52 7.10 3.40 > 8
SDMS-32 2.5 1.46 8.80 4.36 > 8
SDMS-33 3.0 1.4 10.70 5.45 > 8
SDMS-34 3.5 1.35 12.70 6.8 > 8
SDMS-35 4.0 1.32 14.65 7.96 > 8
SDMS-36 4.5 1.3 16.50 9.15 > 8
SDMS-37 5.0 1.25 19.08 11.1 > 8
SDMS-38 5.5 1.25 20.90 12.13 > 8
SDMS-39 6.0 1.25 22.80 13.27 > 8

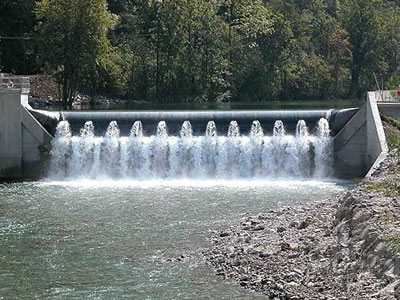

A black disturbed flow rubber dam installed on the top of the concrete slope has beautiful overflow.
SRD-5: Spoiler rubber dam is controlled by automatic control system.

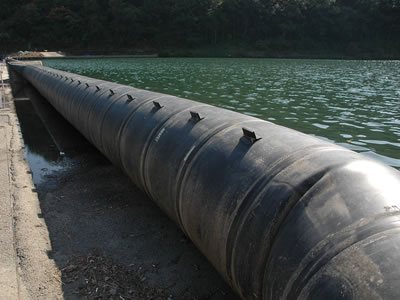

A long span spoiler rubber dam is covered by upstream water.
SRD-6: Spoiler rubber dam has short construction time.

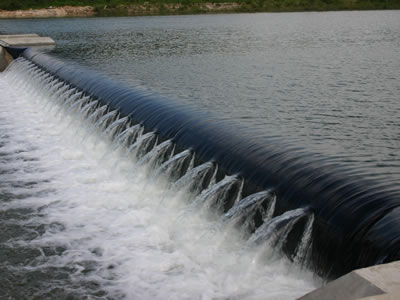

Twelve spoilers incite the water passed the spoiler rubber dam.
SRD-7: Spoiler rubber dam has long service life.

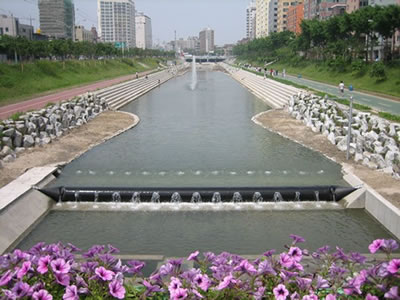

Spoiler rubber dam is in the water and the river shore is made of stone.
SRD-8: Spoiler rubber dam can be used to control flood.

Feature

  • Good elasticity, tensile strength.
  • Resistant to weathering, ozone, UV, deformation, friction, vibration.
  • It has smooth surface with spoiler seismic structure, can eliminate vacuum underneath the dam, can create a beautiful scene of waterfall.
  • Automatic inflation and deflation system provides the dam excellent control of height and air pressure.
  • Long rubber dam does not need piers to firm which is not like concrete dam.
  • In frost area, air inflatable rubber dam has no problem, water inflatable rubber dam is not suitable.
  • Air inflatable rubber dam asks for high demand on inflatable proof; water inflatable rubber dam asks for lower requirement on this aspect.
  • It has short construction time, installation only need 3 to 15 days. It can be installed on new or existing foundation.
  • Easy to install with the help of clamp plates and anchor bolts.
  • Project cost is lower than conventional sluice dam: saving 30% to 70% cement, steel and wood comparing to concrete dam.
  • It has long service life, simple maintenance.

Application

  • Retain water.
  • Control flood.
  • Agricultural irrigation.
  • Power generation.
  • Anti-tide.
  • Groundwater recharge.
  • Reservoir capacity enlargement.
  • Beautify environment.
  • Urban landscaping.
  • Raise existing dams.
  • Erosion control.
  • River regulation.
