Water Inflatable Rubber dam with Stable Structure

Water inflatable rubber dam is a kind of water-inflated stable tear-shaped rubber dam. Rubber dam consists of civil works, dam bag, anchor, filling drainage facilities and control system. It is made of strength canvas as reinforced framework and rubber layer which ensure tightness of the rubber layers. Compared with air inflatable rubber dam, water inflatable rubber dam is more expensive and slower to fill but more stable to provide optimal control over upstream water levels. It is fixed to concrete to create a permanent dam or floodgate. Water can spill over the top automatically without additional support or adjustment. When the flood is coming, rubber weir can completely collapse, does not have water resistance. It is usually used to retain water, adjust the water level, irrigation, generate hydro-electric power, control flood, etc.

A narrow black water inflatable rubber dam has overflow.
WIRD-1: Water inflatable rubber dam fill the medium slower than air inflatable rubber dam.

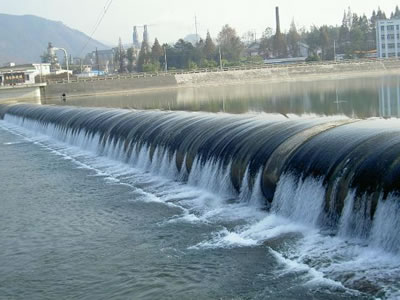

A black water inflatable rubber dam has overflow and upstream has high water level.
WIRD-2: Water inflatable rubber dam is more expensive than air inflatable rubber dam.

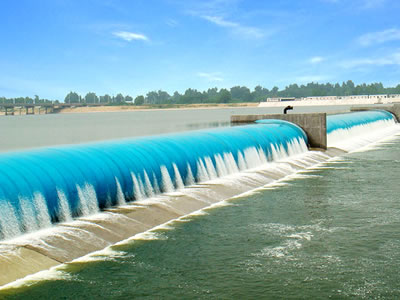

Blue water inflatable rubber dam has overflow and many piers.
WIRD-3: Water inflatable rubber dam is stable to control the upstream water level.
Blue water inflatable rubber dam has overflow and vertical grains.
WIRD-4: Water inflatable rubber dam is in the shape of tear.

Specification

  • Material structure: one cloth two rubber, two clothes three rubber, three clothes four rubber, etc.
  • Color: blue, black, red, gray, purple, etc.
  • Medium in dam: water.
  • According to installation method:
    • Single anchor.
    • Double anchor (pillow-like dam and inclined dam).
  • According to anchored method:
    • Bolt anchored.
    • Wedge anchored.
  • Customization can be available.
Physical and mechanical properties of water inflatable rubber dam
Item Unit Outer layer Middle layer, inner layer Cover rubber sheet
Tensile strength at break MPa 14 12 6
Elongation at break % 400 400 250
Permanent deformation at break % 30 30 35
Hardness (shore A)   55-65 50-60 55-65
Brittleness temperature °C -30 -30 -30
Hot water aging (100 °C × 96 h) Tensile strength at break MPa 12 10 5
Elongation at break % 300 300 200
Hot water aging (70 °C × 96 h) Tensile strength at break MPa 12 10 5
Elongation at break % 300 300 200
Volume expansion ratio % 15 15 15
Ozone aging: 10000 pphm, temperature 40 °C, stretching 20%, no cracking min 120 120 100
Wear loss (akron) cm3/1.61 km 1.0 1.0 1.2
Flexibility, no cracking Ten thousand times 20 20 20
Specification of water inflatable rubber dam
Code Height (m) Inner pressure / outer pressure Security coefficient (k) Bottom gaskets width (m) Dam bag perimeter (m)
WIRDS-1 1.0 1.6 > 8 1.8 3.70
WIRDS-2 1.5 1.55 > 8 2.05 5.40
WIRDS-3 2.0 1.52 > 8 3.40 7.10
WIRDS-4 2.5 1.46 > 8 4.36 8.80
WIRDS-5 3.0 1.4 > 8 5.45 10.70
WIRDS-6 3.5 1.35 > 8 6.8 12.70
WIRDS-7 4.0 1.32 > 8 7.96 14.65
WIRDS-8 4.5 1.3 > 8 9.15 16.50
WIRDS-9 5.0 1.25 > 8 11.1 19.08
WIRDS-10 5.5 1.25 > 8 12.13 20.90
WIRDS-11 6.0 1.25 > 8 13.27 22.80
A black water inflatable rubber dam has overflow under the bridge.
WIRD-5: Water inflatable rubber dam needs wide concrete foundation.

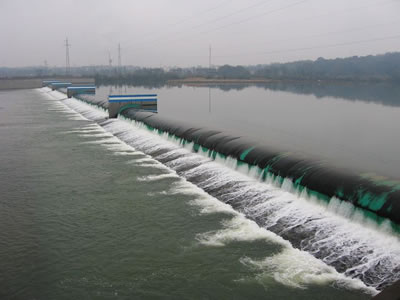

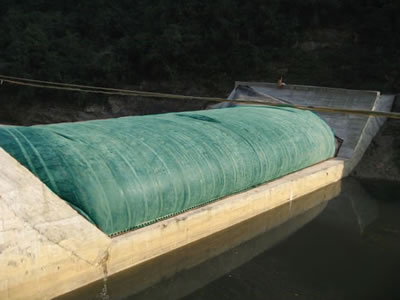

A green water inflatable rubber dam with black protective layer has overflow and many piers.
WIRD-6: Water inflatable rubber dam can withstand overflow 50% in height.
A black water inflatable rubber dam has overflow in a long span river.
WIRD-7: Water inflatable rubber dam is deflated slower than air inflatable rubber dam.

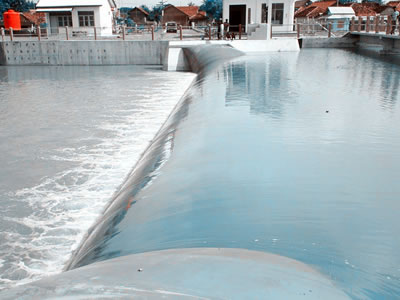

A inclined light blue water inflatable rubber dam has overflow.
WIRD-8: Water inflatable rubber dam can save many materials than conventional sluice dam.

Feature

  • It is more expensive, slower to fill, but more stable to control over upstream water level than air inflatable rubber dam.
  • Tear-shaped rubber dam is on the wide concrete still.
  • It can withstand overflow 50% in height.
  • It can operate without electric power.
  • Outer rubber is thick, is resistant to wear, sunlight, heat, ozone, aging, etc.
  • Middle layer rubber can protect canvas and connect canvas.
  • Inner rubber has high airtight and watertight, is resistant to aging of canvas.
  • Inflating and deflating time of water inflatable rubber dam is longer than air inflatable rubber dam.
  • Inflating water stably, dam bag is heavy which can decrease vibration.
  • Water inflatable rubber dam is high volume low pressure system, so high pressure compressors are not needed.
  • Compared with conventional sluice dam, investment of water inflatable rubber dam reduced by 30-70%, wood saved by over 60%, steel saved by 30-50%, concrete saved by 50%.
  • It is resistant to shock, rust, foundation deformation, also has good sealing effect, perfect seismic performance, completely collapse capability and no water resistance.
  • Various colors and beautiful styles can create landscape and beautify the environment.
  • Inflating or deflating can be controlled by pumps or compressors which are controlled by automatic computer control.
  • Simple construction and installation on new or existing foundation.
  • Maintenance cost of water inflatable rubber dam is low.
  • Construction period is short, only need 3-15 days.
  • The service life span of water inflatable rubber dam usually is up to 15-25 years.
A blue inclined water inflatable rubber dam has overflow and upstream has high water level.
WIRD-9: Water inflatable rubber dam is resistant to shock.
Blue water inflatable rubber dam with overflow is under the piers.
WIRD-10: Blue water inflatable rubber dam can be resistant to rust.

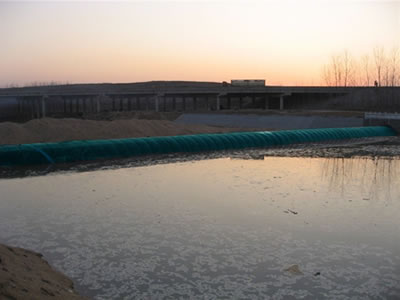

A blue water inflatable rubber dam retain water in one side.
WIRD-11: Water inflatable rubber dam is resistant to foundation deformation.

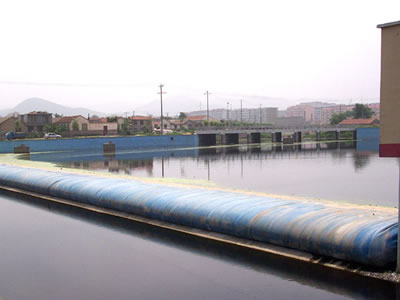

A blue inclined water inflatable rubber dam is on the concrete foundation and the water level is low.
WIRD-12: Water inflatable rubber dam has good sealing effect.

Application

  • Retain water.
  • Adjust the water level.
  • Irrigation.
  • Generate hydro-electric power.
  • Control flood.
  • Tidal barriers.
  • Control water.
  • Develop water entertainment and tourism.
  • Shipping.
  • Increase reservoir capacity.
  • Industrial and agricultural production.
  • Ecological protection.
A blue pillow-like water inflatable rubber dam is on the concrete foundation and the water level is low.
WIRD-13: Water inflatable rubber dam has good perfect seismic performance.
A blue inclined water inflatable rubber dam is in a narrow river.
WIRD-14: Water inflatable rubber dam has various colors.

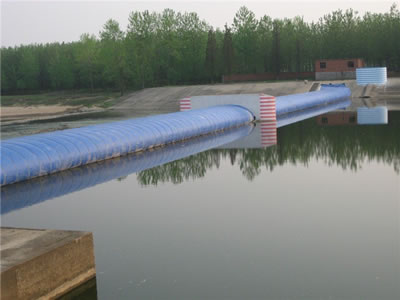

A blue water inflatable rubber dam is under the pier and water level is low.
WIRD-15: Water inflatable rubber dam is easy to install.

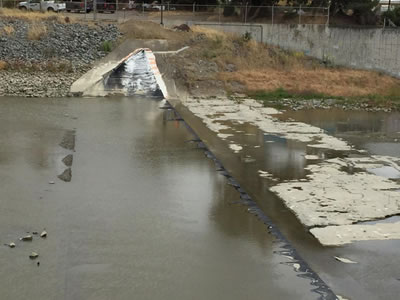

Complete collapsed water inflatable rubber dam is in the water.
WIRD-16: Complete collapsed water inflatable rubber dam have no resistance to water.

Inquiry for Our Product

Zaoqiang Dacheng Rubber Co., Ltd.
E-mail: sales@inflatabledam.com

When you contact us, please provide your detail requirements.
That will help us give you a valid quotation.
